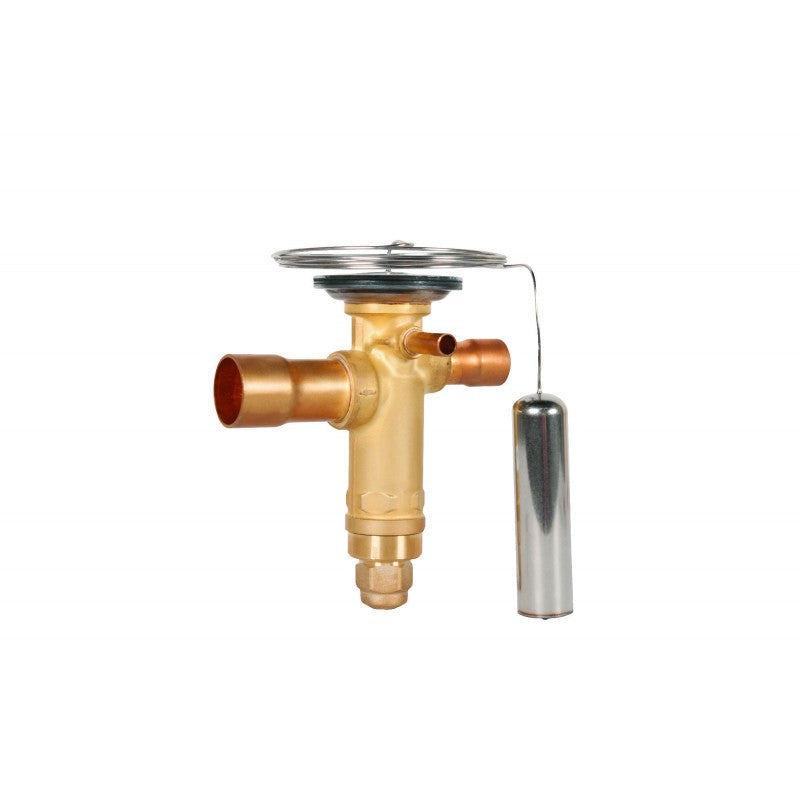

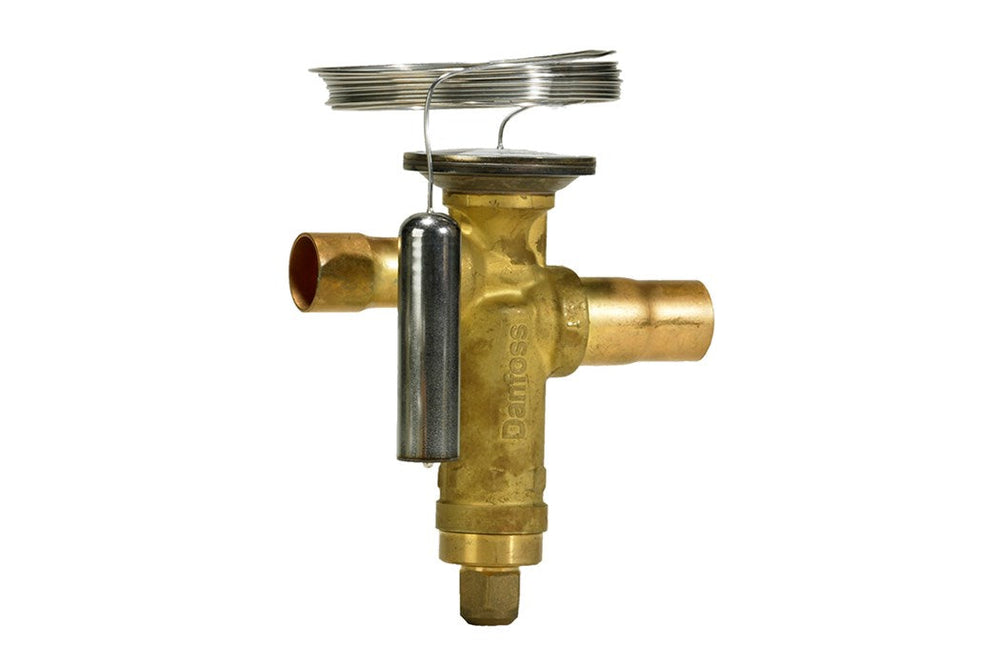

Danfos Thermal Expansion Valve TGEL 4.5 (16KW) R410A 067N3152

Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Thermostatic expansion valve regulate the flow of refrigerant liquid into The evaporator. The flow is controlled by the valve is thermal bulb which is Attached to the suction line at the outlet of the evaporator. The thermal Bulb senses the evaporator heat and adjusts the valve to admit refrigerant Liquid in accordance with the refrigerating load

    Model No : 067N3154 OMR 75.000 / Pcs

    Model No : 067N3156 OMR 80.000 / Pcs

    Model No : 067N3157 OMR 80.000 / Pcs

    Model No : 067N3159 OMR 80.000 / Pcs

    Model No : 067N3162 OMR 85.000 / Pcs

    Model No : 067N3163 OMR 90.000 / Pcs

    067N3152 DANFOSS REFRIGERATION Thermostatic expansion valve, TGE

    Product name: Thermostatic expansion valve, Type: TGEL, Refrigerants: R32;R410A, Inlet size [in]: 1/2 in, Inlet connection type: Solder, ODF, Outlet size [in]: 7/8 in, Outlet connection type: Solder, ODF
    Gross weight0.49 Kg
    Net weight0.36 Kg
    EAN5702428140874
    ApprovalC UL US LISTED
    EAC
    LLC CDC TYSK
    Balanced port [Yes/No]Yes
    Body materialBrass
    Body size10
    Bulb temperature max. [ºC]100 °C
    Bulb temperature max. [ºF]210 °F
    Capillary tube length [in]59 in
    Capillary tube length [mm]1500 mm
    Connection materialCopper
    DirectionStraightway
    Element temperature max. [°C]110 °C
    Element temperature max. [°F]230 °F
    Equalization connection typeSOLDER, ODF
    Equalization size [in]1/4 IN
    Factory setting (FS) [°C]5 °C
    Flow directionBi-flow
    Flow direction indicatorEmbossed 1-way arrow
    Identical product067N3172
    Inlet connection typeSOLDER, ODF
    Inlet size [in]1/2 IN
    Max. Working Pressure [bar]46 bar
    Max. Working Pressure [psig]667 psig
    Orifice size4
    Outlet connection typeSOLDER, ODF
    Outlet size [in]7/8 IN
    Packing formatMulti pack
    Parts includedBulb strap
    Pressure equalizationExternally equalized
    Product accessoriesTXV accessories
    Product descriptionThermostatic Expans. Valve
    Product family nameTGE
    Product GroupExpansion valves
    Product nameThermostatic expansion valve
    Product typeTGE
    Quantity per packing format 1 Pcs
    Rated cap. cond. Range N [IMP]tcond=100 °F
    tevap=40 °F
    tliq=98 °F
    Rated cap. cond. Range N [SI]tcond=38 °C
    tevap=4.4 °C
    tliq=37 °C
    Rated capacity R32 [kW]24 kW
    Rated capacity R32 [TR]7 tons
    Rated capacity R410A [kW]16 kW
    Rated capacity R410A [TR]4.5 tons
    RefrigerantsR32
    R410A
    ServiceableNo
    Static Superheat (SS) [°C]4 °C
    Static Superheat (SS) [°F]7.2 °F
    Superheat settingAdjustable
    System line applicationLiquid line
    Temperature range [°C] [Max]10 °C
    Temperature range [°C] [Min]-40 °C
    Temperature range [°F] [Max]50 °F
    Temperature range [°F] [Min]-40 °F
    Valve body temp. max. [°C]100 °C
    Valve body temp. max. [°F]210 °F

    Made in China
    MOQ : 5 Pcs
    Delivery : 10 Days after payment
    These delivery times are estimations and may vary when the item order has been processed. You will be notified of any change to delivery times once the order has been processed.
